1 Ton Mini Excavator with 13.5 HP Gasoline Engine and Thumb Clip-MS10H

13.5 HP gasoline engine
Hydraulic thumb clip & quick coupler (Standard)

$4,499.00

This MS10H 1-ton mini excavator is equipped with a powerful 13.5 HP Rato gasoline engine. Its compact and flexible design makes it especially suitable for working in narrow spaces and for diverse construction needs. With its 1-ton class operating capacity, the MS10H can efficiently complete various applications such as landscaping, pipeline installation, small construction sites, and farms.

Our MS10H mini excavator features a 13.5 HP Rato gasoline engine and a small, flexible design that is very suitable for operation in confined spaces. Coupled with a 1-ton class operating capacity, it offers diverse usage scenarios including landscaping, pipeline installation, small construction sites, and farms.

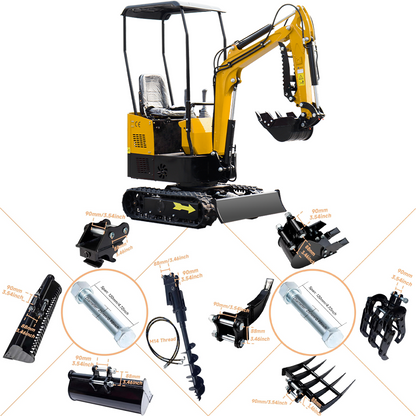

At the same time, we also provide various attachments for different use cases, enabling this 1-ton mini excavator to easily perform tasks such as lifting and digging. Whether you are an engineering team or an individual user, this MS10H 1-ton mini excavator can be your reliable helper.

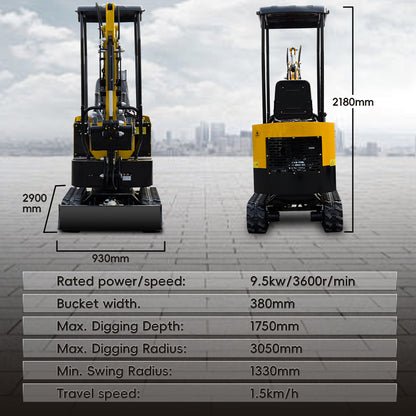

  • Weight: 1000 kg
  • Overall Dimension (L×W×H): 2900 × 930 × 2180 mm
  • Wheelbase: 910 mm
  • Travel Speed: 1.5 km/h

Powertrain

  • Engine: Briggs & Stratton
  • Optional Engine: Briggs & Stratton
  • Bore Stroke: Single cylinder, fan cool
  • Rated Power: 9.5 kW / 3600 rpm
  • Displacement: 6.8 ml/r

Working device

  • Digging Bucket Capacity: 0.025 cbm / 120 kg
  • Bucket Width: 380 mm
  • Max. Digging Depth: 1750 mm
  • Max. Vertical Digging Depth: 1550 mm
  • Max. Digging Height: 2610 mm
  • Max. Dumping Height: 1850 mm
  • Max. Digging Radius on Ground: 3050 mm
  • Min. Rotation Radius: 1330 mm

Chassis and tracks

  • Total Length of Track: 1230 mm
  • Chassis Width: 896 mm
  • Track Width: 180 mm
  • Track Height: 132 mm
  • Chassis Ground Clearance: 320 mm
  • Platform Ground Clearance: 380 mm
  • Platform Back Turning Radius: 784 mm

Bulldozer Blade

  • Max. Upgrade Height of Bulldozer Blade: 345 mm
  • Max. Digging Depth of Bulldozer Blade: 255 mm
