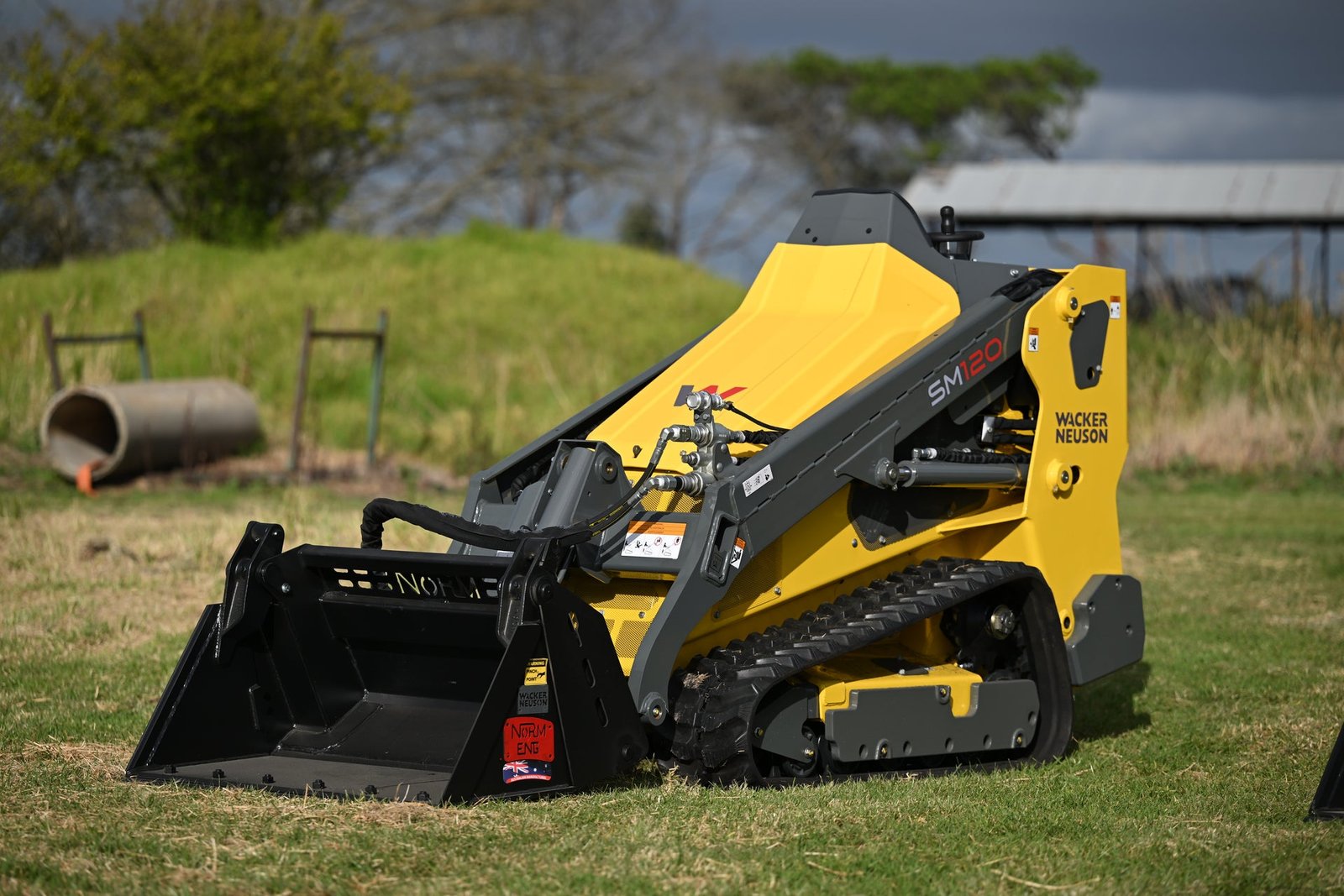

SM120 Utility Track Loader: Do More with Less
The SM120 uses Wacker Neuson’s ergonomic mini-loader controls, while maintaining operator comfort features such as padding and a spring suspension for a better ride and added stability. The high hinge pin of the SM120 provides a 5’3″ bucket dump height and allows for easy loading into high sided trucks and dumpsters. The wide (11″) track width provides among the lowest ground pressures on the market, minimizing incidental damage to the work site.
PRODUCTIVITY PACKAGE:
24.7 hp [18.4 kW] Yanmar 3TNV80FT diesel engine, Water-cooled, T4F, 3-cylinder, Turbocharged – EH Joystick controls, hand and foot throttles
ISO Control Pattern Joystick Controls
Quick Grip – Grip Mounted, Proportional Aux Hydraulic Control, Patent Pending Grip Design
Operator Presence Foot Pedal
Ride Control
3″ mono-color display
Standard Auxiliary Hydraulics – 13.0gpm
14 Pin Attachment Control with A+/- & B+/- Circuits
11″ [280mm] Wide Tracks w/Low-mounted Undercarriage Counterweights
Technical Data
Ground Pressure (standard track)
3.9 psi
Travel speed
5.2 m/H
Overall Length without bucket
84.3 ”
Overall Length with Bucket
108 ”
Overall width without bucket
35.5 ”
Height
58.2 ”
Bucket Hinge Pin Height
85.7 ”
Bucket roll back at ground
25 °
Bucket roll back at maximum height
92 °
Angle of departure
25 °
Bucket dump height at maximum height
62.8 ”
Bucket dump angle at maximum height
42 °
Operating weight
3,754.5 lb
Track width
9.1 ”
Ground clearance
7.8 ”
Length of Track on Ground
43 ”
Dump reach at maximum height
21.9 ”
Engine
Cylinder
3
Cylinder capacity
77.3 Inch3
Power rating max.
24.8 hp
Operating power
24.7 hp
Operating Engine speed
2,600 1/min
Engine type
Diesel engine
Engine Manufacturer
Yanmar
Engine Designation
3TNV80 FT
Hydraulic
Flow rate
12.9 gal/mi
Auxiliary relief pressure
3,291.5 psi
Operating fluids
Fuel Tank capacity
16.9 gal US
Chassis
Tip Load
3,503.1 lb
Rated Operating Capacity at 50% Tip Load
1,752.7 lb
Rated Operating Capacity at 35% Tip Load
1,225.8 lb
Engines
Yanmar 3TNV80 FT
Cylinder
3
Cylinder capacity
77.3 Inch3
Power rating max.
24.8 fps
Engine type
Diesel engine
Engine Manufacturer
Yanmar
Engine Designation
3TNV80 FT
