Mini Stand On Skid Steer Wheel Loader MS320L, 13.5 HP B&S Engine
Mini Stand On Skid Steer Wheel Loader MS320L, 13.5 HP B&S Engine - Image 2
Mini Stand On Skid Steer Wheel Loader MS320L, 13.5 HP B&S Engine - Image 3
Mini Stand On Skid Steer Wheel Loader MS320L, 13.5 HP B&S Engine - Image 4
Mini Stand On Skid Steer Wheel Loader MS320L, 13.5 HP B&S Engine - Image 5
Mini Stand On Skid Steer Wheel Loader MS320L, 13.5 HP B&S Engine - Image 6
Mini Stand On Skid Steer Wheel Loader MS320L, 13.5 HP B&S Engine - Image 7

Mini Stand On Skid Steer Wheel Loader MS320L, 13.5 HP B&S Engine

Cost-Effective: Lower production costs from our China-based factory.
One-Stop Shop: Wide range of compact construction machinery.
Top Quality: CE, SGS, TUV, ISO certified products.
Durable Attachments: Compatible with most compact excavators and skid steer loaders.

$3,450.00

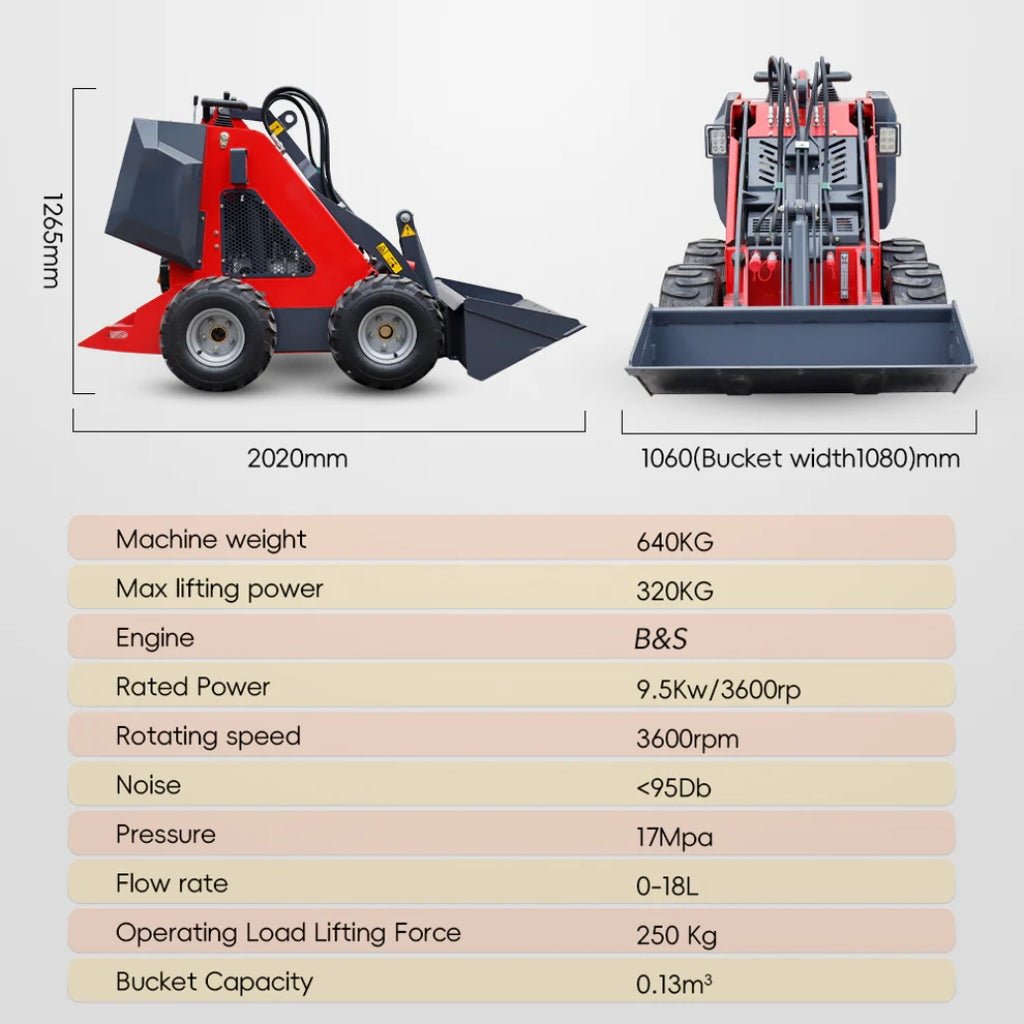

Specification:

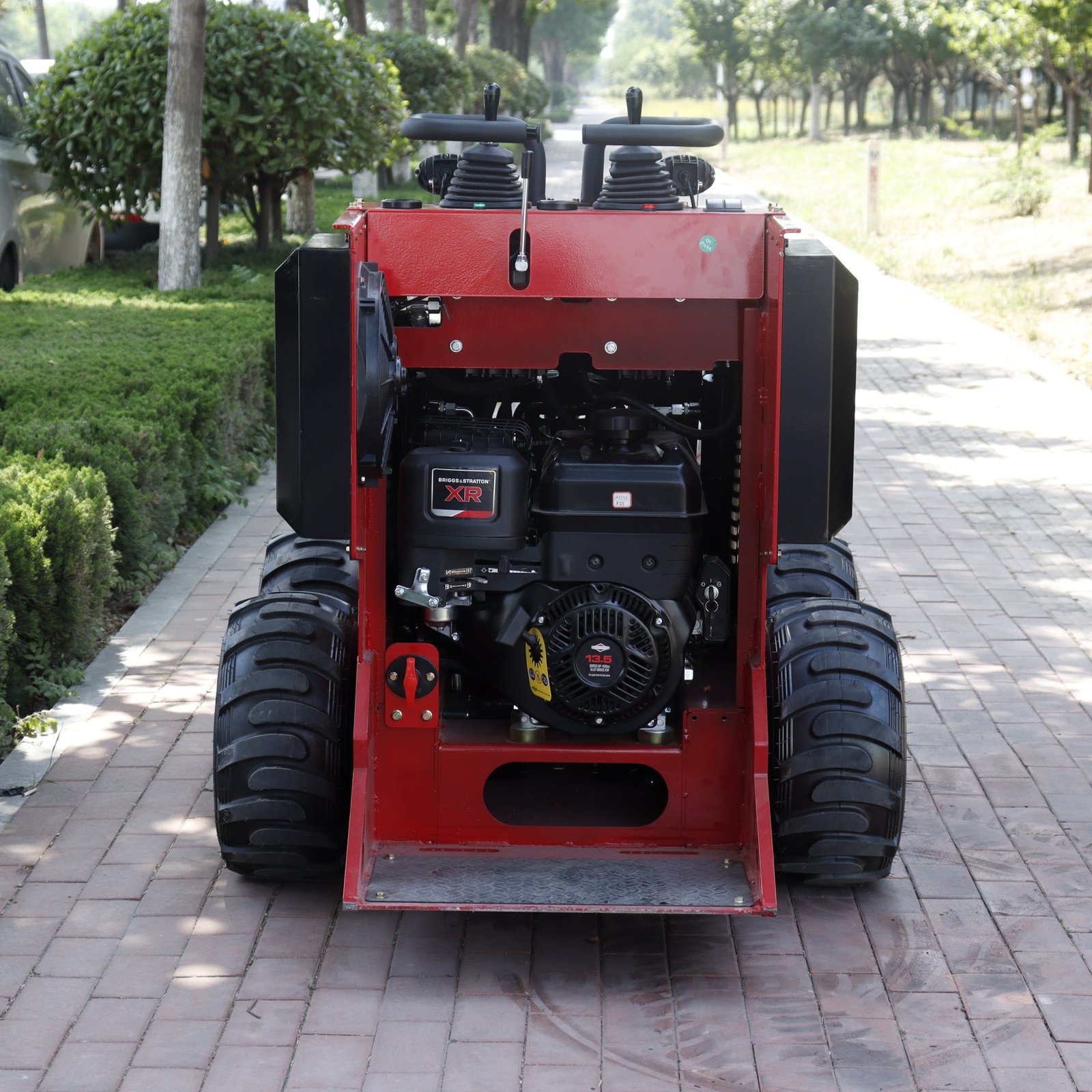

  • Engine: Briggs & Stratton
  • Rated Power(Kw): 9.5Kw/3600rp
  • Rotating speed (rpm): 3600
  • Noise(Db): <95
  • Pressure (Mpa): 17Mpa
  • Flow rate: 0-18L
  • Operating Load Lifting Force: 250 Kg
  • Bucket Capacity: 0.13m³
  • Max Lifting Force: 320 Kg
  • Travel speed: 0-4.5Km/h
  • Operating Weight: 665
  • Oil: Gasoline
  • Max working height: 2195mm
  • Max pin height: 1955m
  • Max Dumping height: 1535 mm
  • Max Dumping distance: 410mm

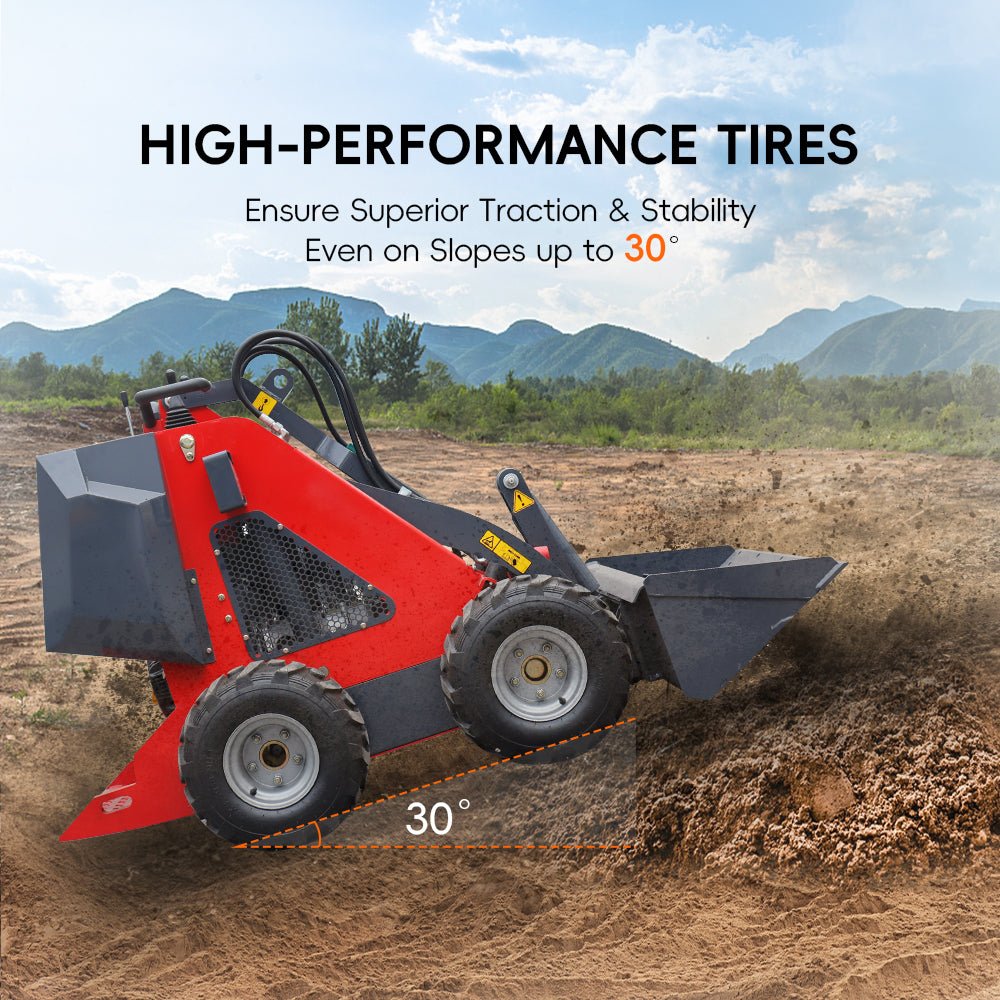

  • Max Dumping Angle: 30°
  • Total height: 1265mm
  • Ground clearance: 115mm
  • Wheel base: 640mm
  • 0verall length without bucket: 1570mm
  • Total width: 1060 mm
  • Bucket width: 1080mm
  • Total length with bucket: 2020 mm
