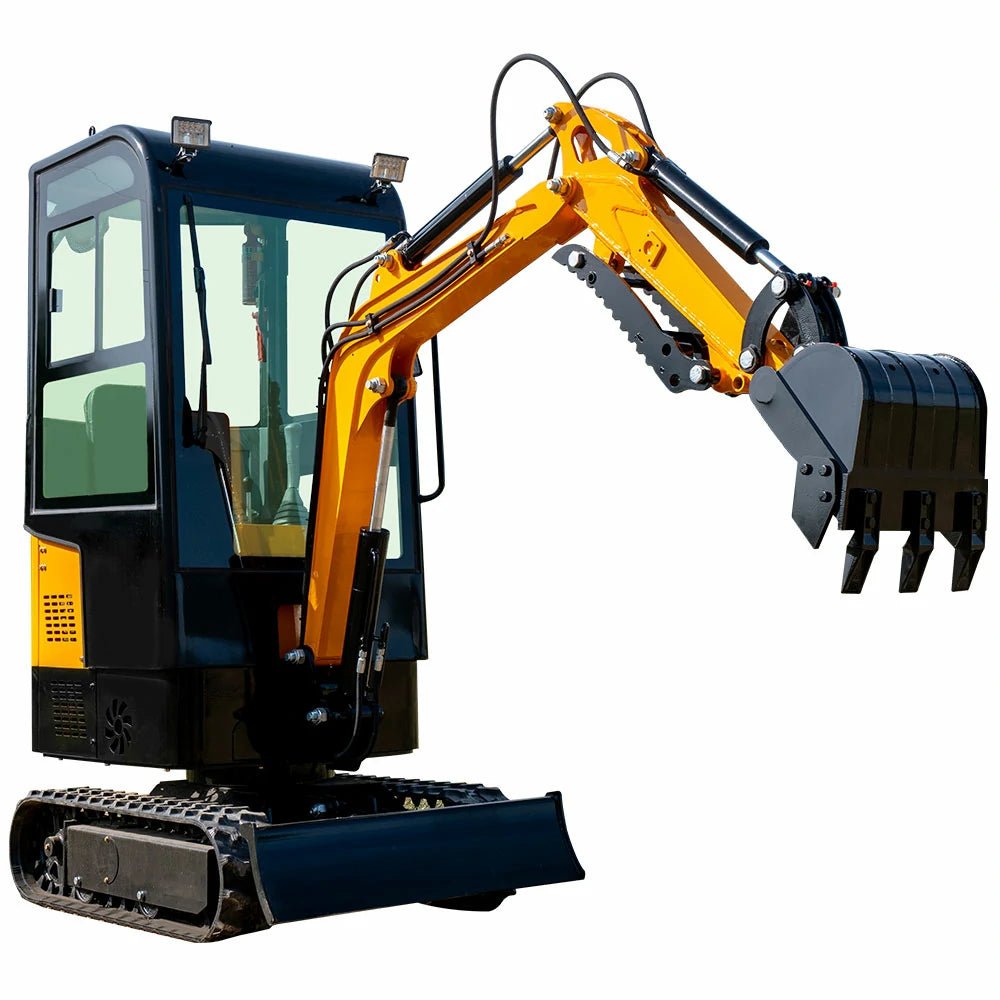

MS10H Gasoline 1-Ton Mini Excavator, 13.5 HP, with Cab

Exceptional Digging Capabilities: With a 15-inch smooth bucket for mini excavator and a maximum digging depth of 68.9 inches, it handles various tasks with precision and efficiency.

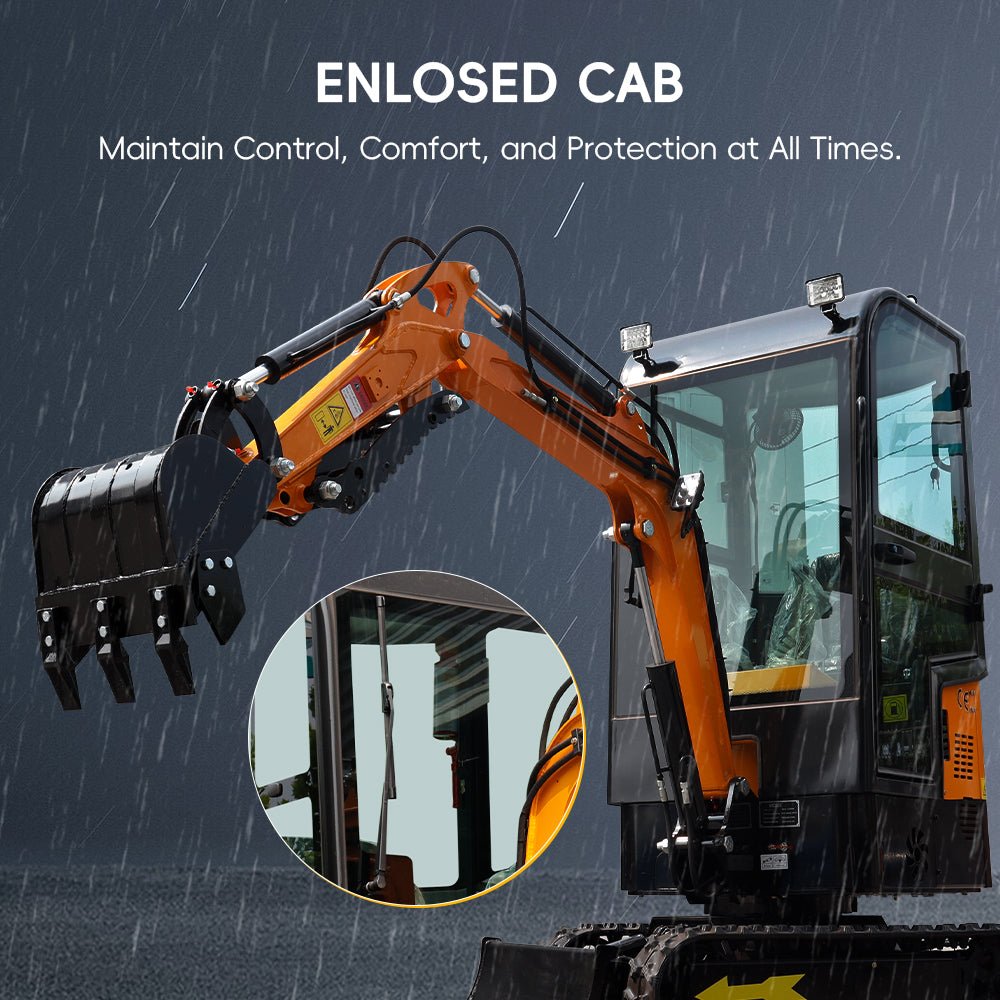

User-Friendly Operation: Features like one-button start, an enclosed cab, and electric wipers make this mini excavator safe and easy to operate, even in harsh weather.

$4,799.00

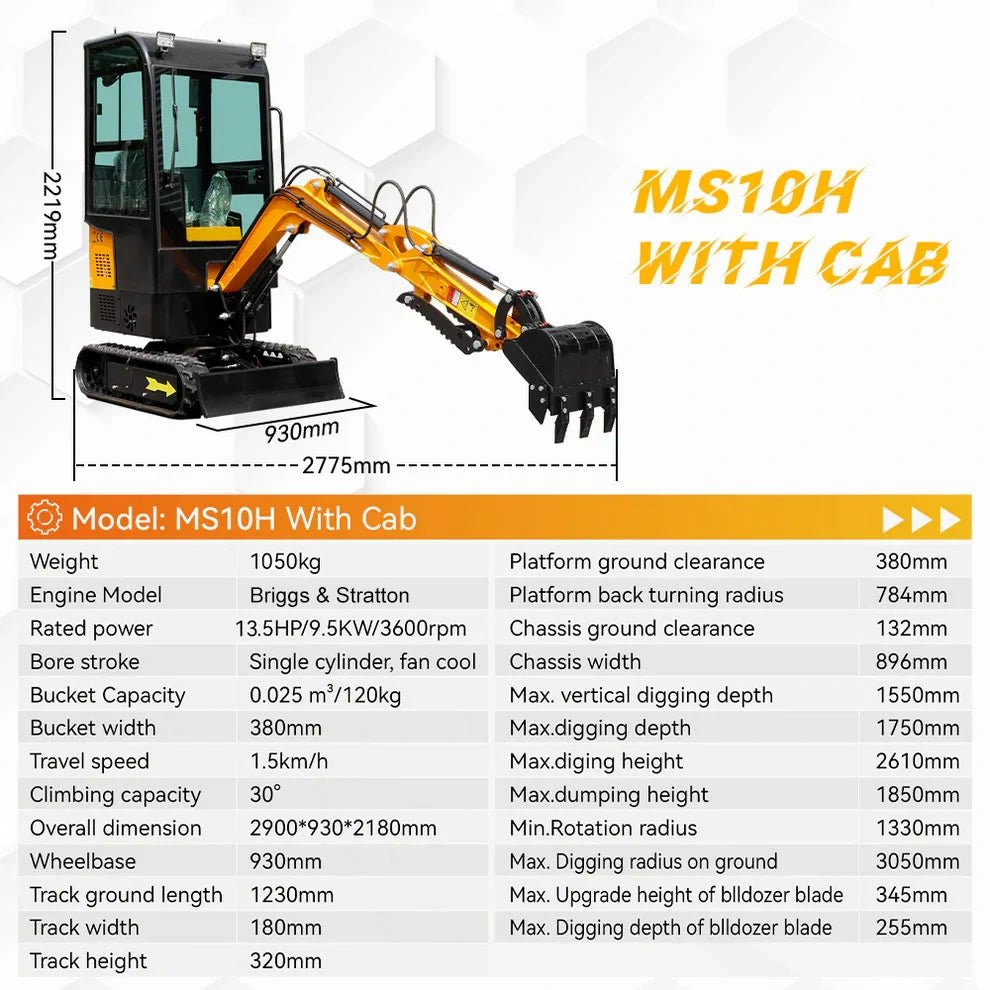

Specification:

  • Weight: 1000kg
  • Digging bucket capacity: 0.025cbm/120kg
  • Bucket width: 380mm
  • Engine: Briggs & Stratton
  • Optional Engine: Rato
  • Bore stroke: Single cylinder, fan cool
  • Rated power: 9.5kw / 3600rpm
  • Displacement: 6.8ml/r
  • Travel speed: 1.5km/h
  • Overll dimension: ( LxWxH)2900 x 930 x 2180 mm
  • Wheelbase: 910 mm
  • Total length of track: 1230mm
  • Platform ground clearance: 380 mm
  • Platform back turning radius: 784 mm
  • Chassis width: 896 mm
  • Track width: 180 mm
  • Chassis ground clearance: 320 mm
  • Track height: 132 mm
  • Max. Digging depth: 1750 mm
  • Max. Vertical digging depth: 1550 mm
  • Max. Digging height: 2610 mm
  • Max. Dumping height: 1850 mm
  • Max. Digging radius on ground: 3050 mm
  • Min. Rotation radius: 1330 mm
  • Max. Upgrade height of bulldozer blade: 345 mm
  • Max. Digging depth of bulldozer blade: 255 mm
