MS430Y 23 HP, Two-pump Three-valve Mini Stand On Skid Steer Track Loader

This machine requires a forklift to unload. If you don’t have a forklift, please email us, and we will provide free unloading service,no hidden fees.

Cost-Effective: Lower production costs from our China-based factory.
One-Stop Shop: Wide range of compact construction machinery.
Top Quality: CE, SGS, TUV, ISO certified products.
Durable Attachments: Compatible with most compact excavators and skid steer loaders.

$6,099.00

Wide Applications

The compact and reliable design of the MMS skid steer loader ensures easy maneuvering in confined areas and allows for quick and casual replacement or installation of various work devices on the job site. It is suitable for narrow site operations, such as municipal engineering, landscaping, factory workshops, warehouses, docks, farms and orchards, gardens and parks.

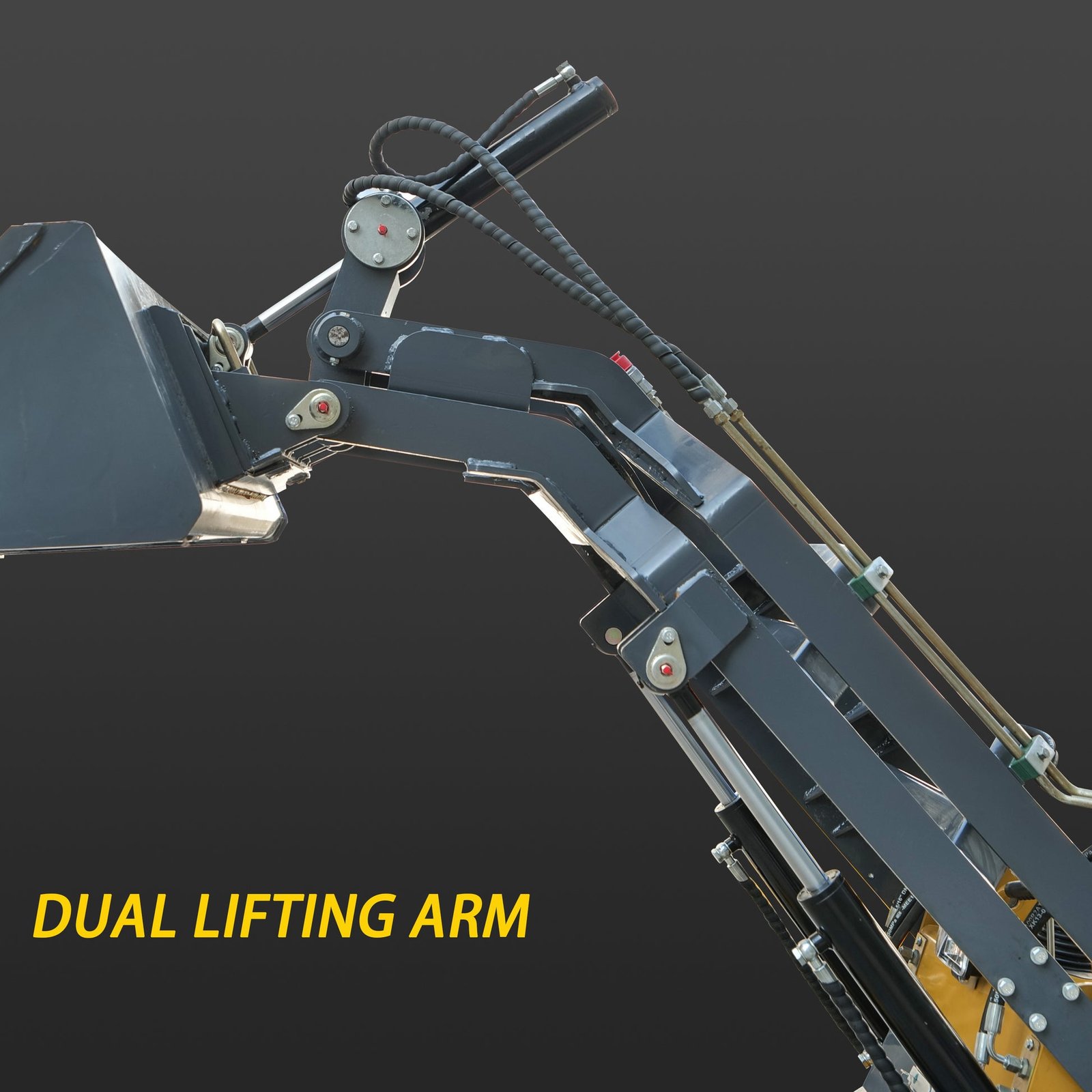

Sturdy Dual Lifting Arm

The machine adopts a double lifting boom, which can lift a larger weight and is more sturdy and durable.

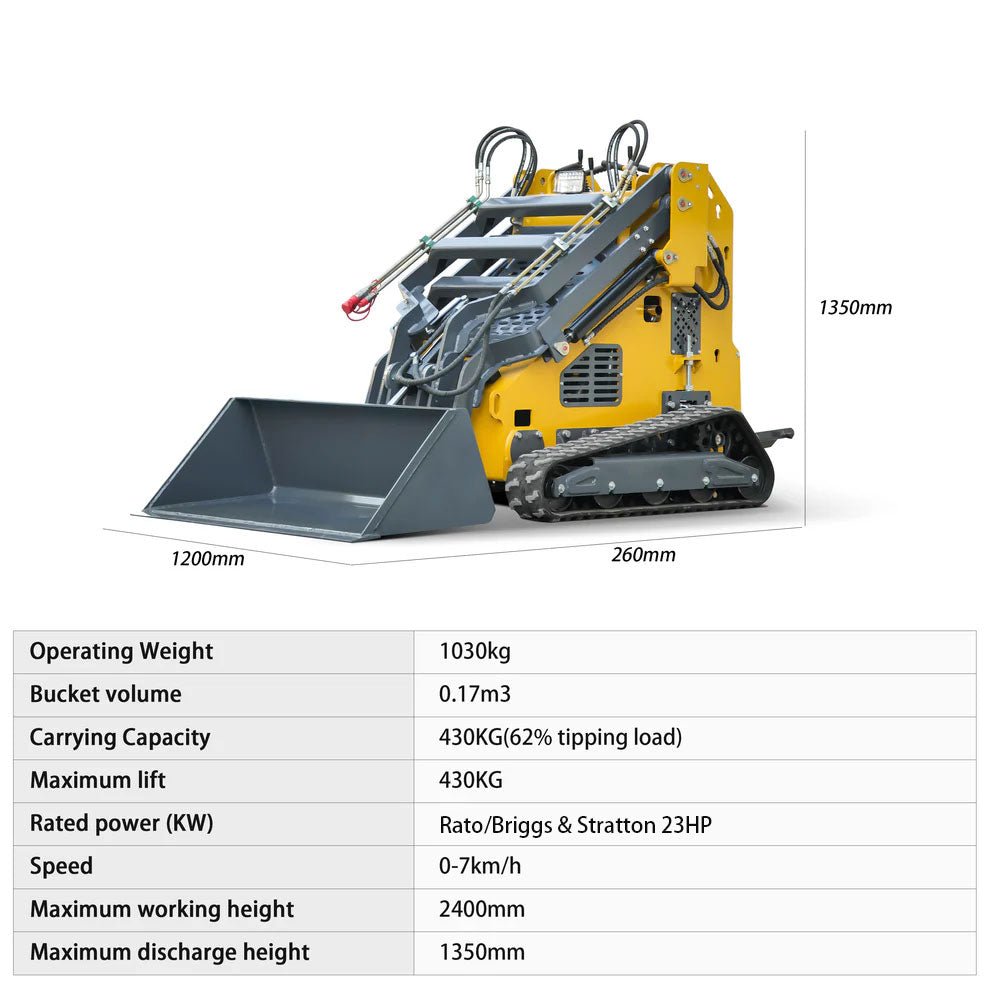

Specification:

Main Size:

  • Max working height: 2400mm
  • Max pin height: 2000mm
  • Max discharge height: 1350mm
  • Max discharge distance: 800mm
  • Bucket swing Angle: 55°
  • Bucket discharge Angle: 40°
  • Departure Angle: 20°
  • Total height: 1350mm
  • Ground height: 100mm
  • No bucket length: 2020mm
  • Total width: 1200mm
  • Bucket width: 1200mm
  • Total length (with bucket): 2600mm

Engine:

  • Rated power(HP): Rato/Briggs & Stratton 23Hp
  • Rated speed(rpm): 3600
  • Noise (Db): <95
  • Fuel tank volume (L): 30L
  • Hydraulic tank volume(L): 20L

Hydraulic system:

  • System Pressure(Mpa): 25MPa=250bar=3626psi
  • Standard flow(L/Min): 33L/min
  • Traveling pump flow(L/Min): 90L/min
  • Replenishment pump flow(L/Min): 13L/min
  • Working system(L/Min): 44L/min

Performance parameter:

  • Carrying capacity: 430Kg(62%
    tipping load)
  • Bucket volume: 0.17 m3
  • Maximum lift: 430Kg
  • Speed: 0-7 Km/h
  • Net weight: 1030Kg
  • Angle of climb: 20 degree
